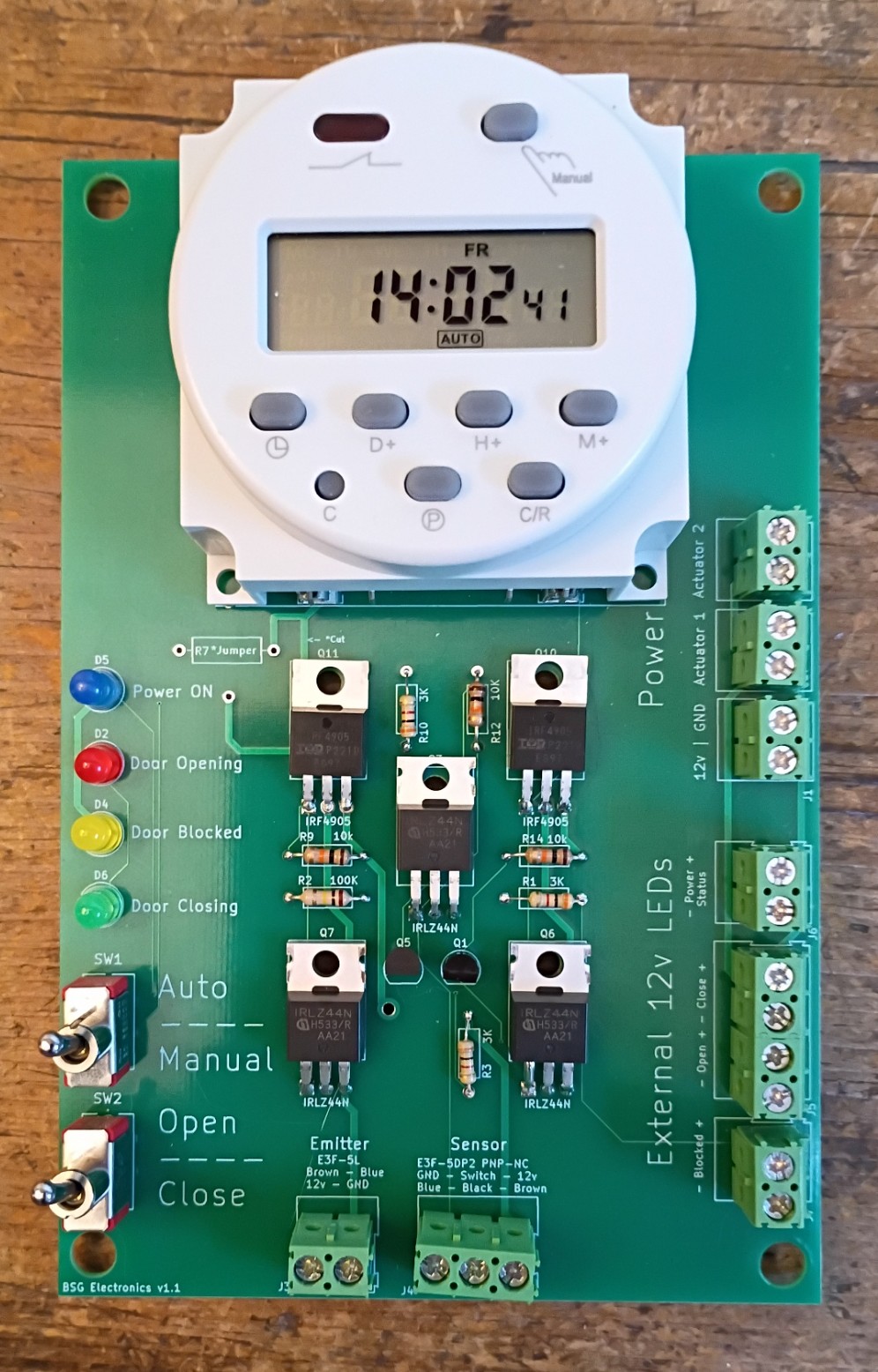

This is a DIY solder motor controller for a chicken coop. Use this for your custom build chicken coop doors that need timer integration and direction reversing. You build and solder
Key Features

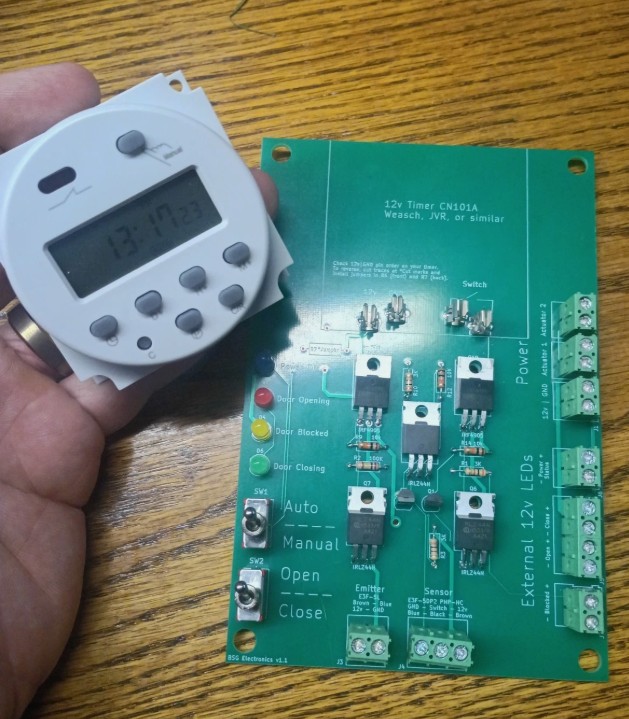

- Detachable Timer slot

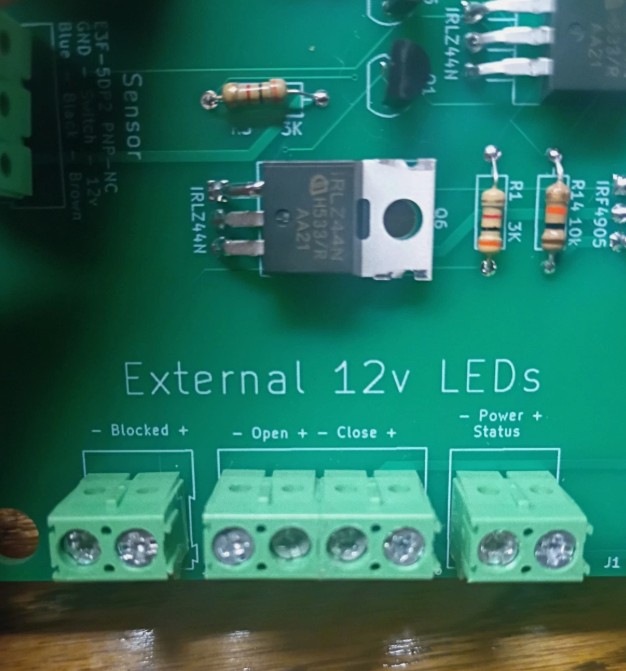

- External LED status hookups

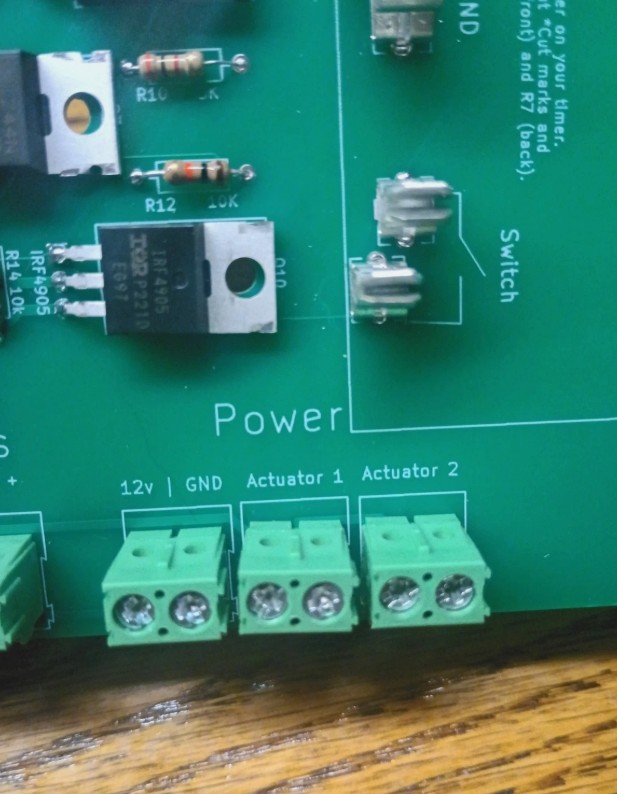

- 2 outputs for linear actuators
- Infrared safety beam cutoff

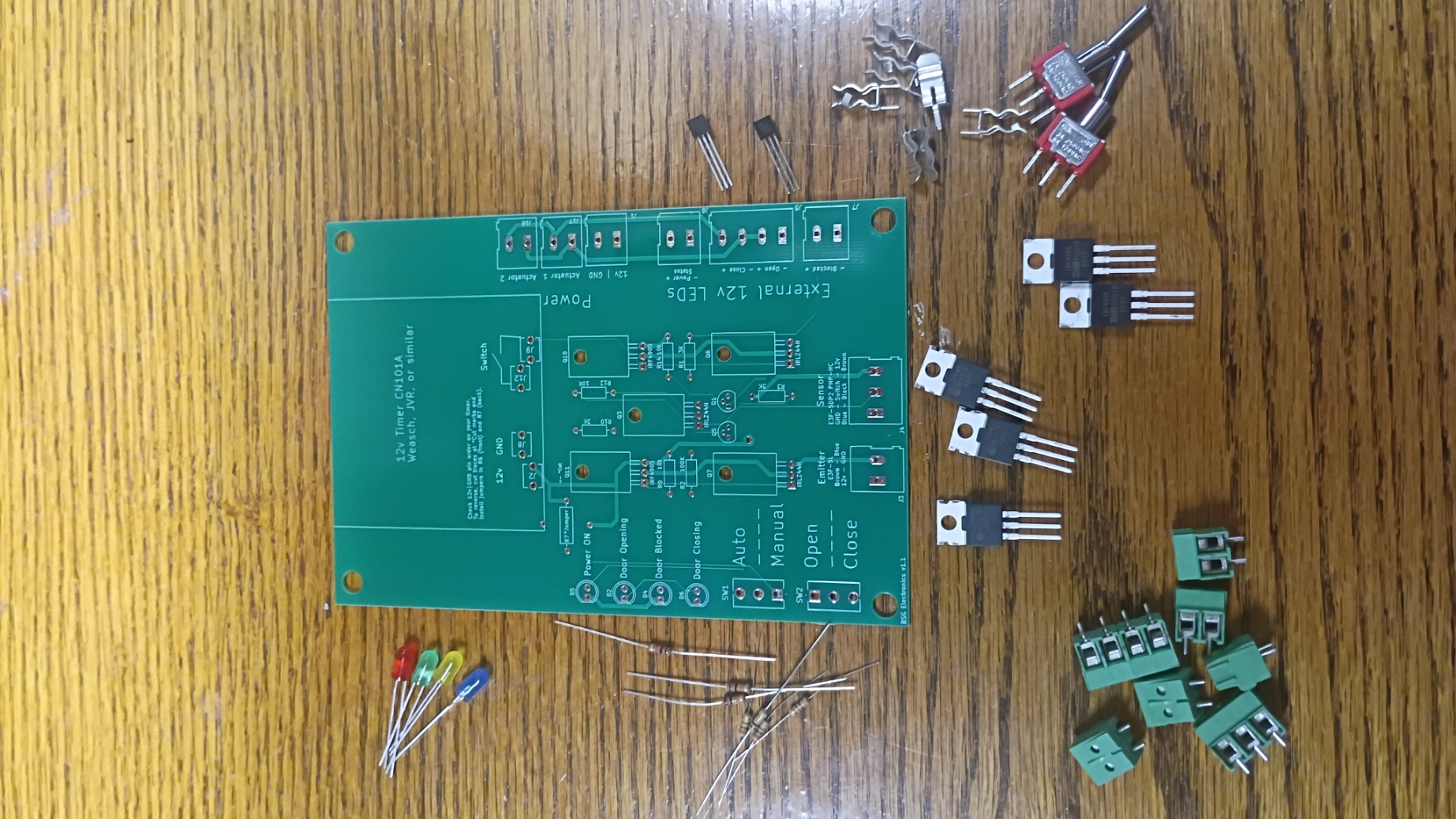

Parts included in kit
- PCB
- Timer Connectors
- Green terminal blocks

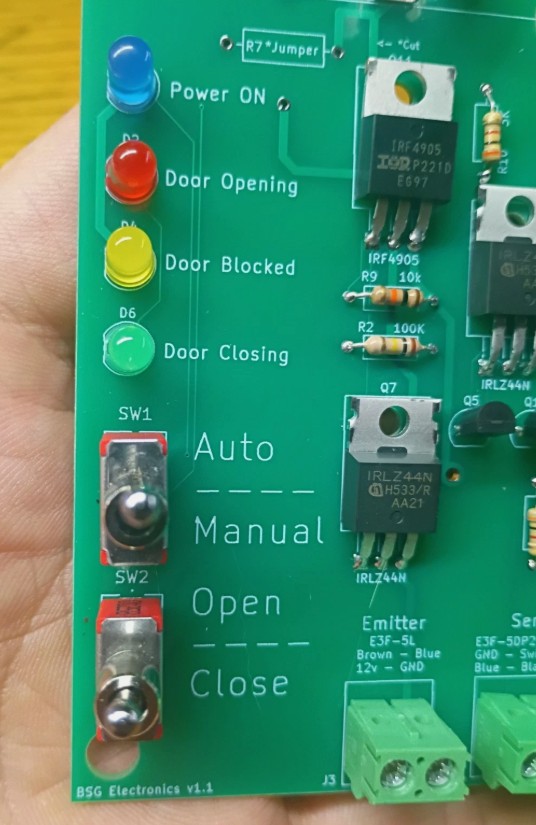

- Switches
- Internal LEDs
- Transistors and resistors
Parts not included - you buy separately

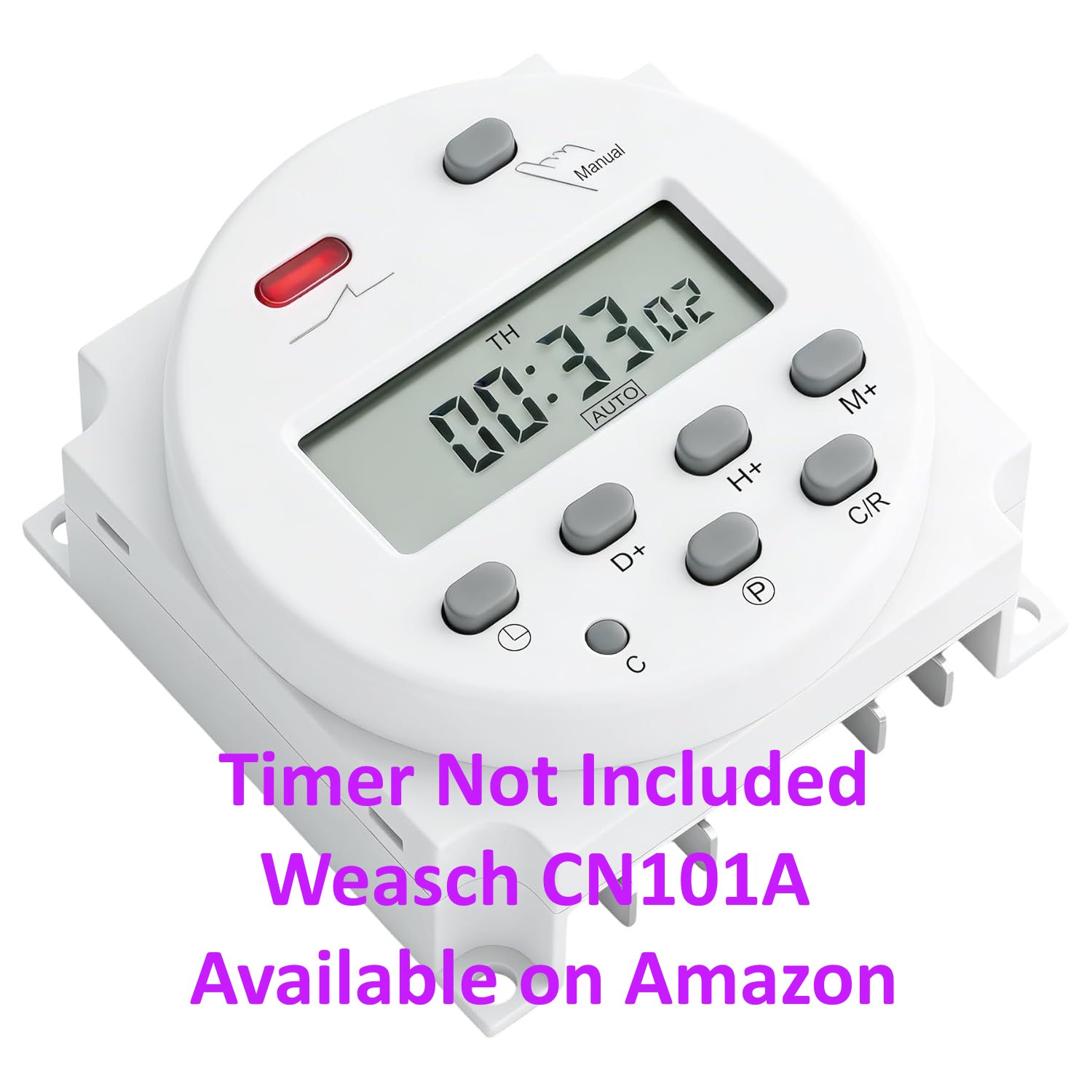

- Weasch Timer CN101A - Available on Amazon
- 12v external bezel LEDs - Available on Ebay
- 12v DC 5amp Power Supply - Available on Amazon - part B0D7GGGM6Q or similar
- Photoelectric beam and receiver - I suggest one "E3F-5L" emitter and one "E3F-5DP2" sensor. Sensor is PNP NC
Full Build Instructions
